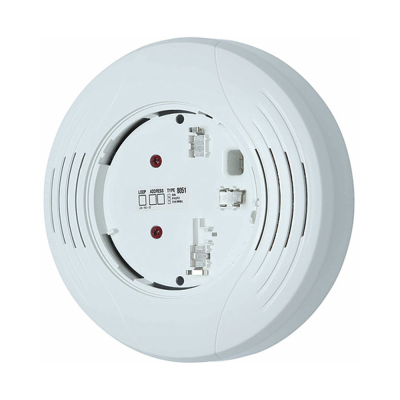

Detector base with integral sounder.

Two selectable tone options: ANSI Temporal 3 (T3) and Continuous.

Accepts Select Series and 300 Series intelligent plug-in addressable detectors.

The B200SR-LF sounder bases which are ideal when appearance is critical, designed for new and existing dwelling unit applications. The low frequency (LF) base produces a 520 Hz frequency, the most ideal for waking and sleeping occupants.

Compatible with the Pertronic F220 panel.

Features

• Tone selection through an onboard jumper
• UL 268 and UL 464 compliant
• Pre-wire mounting plate fits various junction box sizes
• Fully compatible with existing B501BH-Series sounder base installations
• Mechanical locking feature prevents removal of attached sensor head
• 520 Hz +/- 10% square wave tone (B200SR-LF)

---
